Cade logo

Reef

S2/F

Frag Aquariums with distinction

ReefReef

The ultimate Shallow Reef or Dedicated frag system.

The CADE Reef S2/F series are the new benchmark in coral propagation Aquariums. Identical to the full sized Reef S2 systems with the only exception, height!

Reef S2/F 'Frag' Tank

The Reef S2/F series 'frag' series are the S2 Classic's little brother, an identical shallow version designed specifically for coral propagators or shallow reef applications. Expertly crafted for un-compromising functionality and durability. CADE tanks are renowned for their beautiful clean lines, perfect silicone, smartly concealed silent weir and large ATO reservoirs.

  • Super high clarity Opti-Clear glass finished with flat polished edges and laser etched CADE logo. Your badge of authenticity.
  • Highest quality German 'Wacker' silicone, precision applied producing perfect gaps and razor sharp edges.
  • Silent 'Twin Intake' Slimline Weir allows for efficient debris uptake at all levels and acts as an emergency intake in the event of blockage.
  • Black rear glass panel neatly concealing the weir, ATO reservoir and all Aquarium plumbing.
  • Pre laminated white base glass makes it perfect for a bare bottom reef or a thin layer of sand that is often pushed around exposing the base glass.
  • Sleek aluminum Jump Net included assembled.
No items found.

Clean minimalist functional Aquarium design.

Highest clarity aquarium glass and perfectly cut silicone edges.

Highest clarity aquarium glass and perfectly cut silicone edges.

  • Rimless high clarity Opti-Clear tank with flat polished edges glued constructed with the highest quality German 'Wacker' Aquarium safe silicone.
  • Silicone is precision applied to produce perfect gaps and a razor sharp minimalist finish. We use clear silicone only! Black silicone hides imperfections like air bubbles or silicone separation.
  • White laminate is pre-applied to the underside of the tank to increase light reflection.
  • Our CADE logo is laser etched into the front panel serving as your guarantee of authenticity.
Slimline glass weir with surface and low-level intakes.

Slimline glass weir with surface and low-level intakes.

  • The Reef S2/F slimline glass weir is neatly concealed behind the rear glass panel offering an uninterrupted view of your Aquarium.
  • Both surface skimming and low-level water intakes enable superior uptake of heavier debris that would otherwise fail to reach surface intakes on regular weirs.
  • How does it work? Behind the intake vents is a sealed glass channel that receives water from the low intake and directs it to the top of the weir. The panel prevents direct flooding into the weir and directs debris to the surface via the channel where it is efficiently sucked into the drainage system preventing sediment accumulation in the weir.
Gravity-fed ATO reservoir neatly concealed behind tank.

Gravity-fed ATO reservoir neatly concealed behind tank.

  • The rear wall of the Reef S2 models conceals our weir and a large capacity Auto Top Off (ATO) freshwater reservoir which replenishes evaporated water via a gravity fed float valve positioned in the return pump chamber of the sump filter.
  • We think this is the smartest way to achieve large RO volumes without compromising valuable sump filtration space.
No items found.

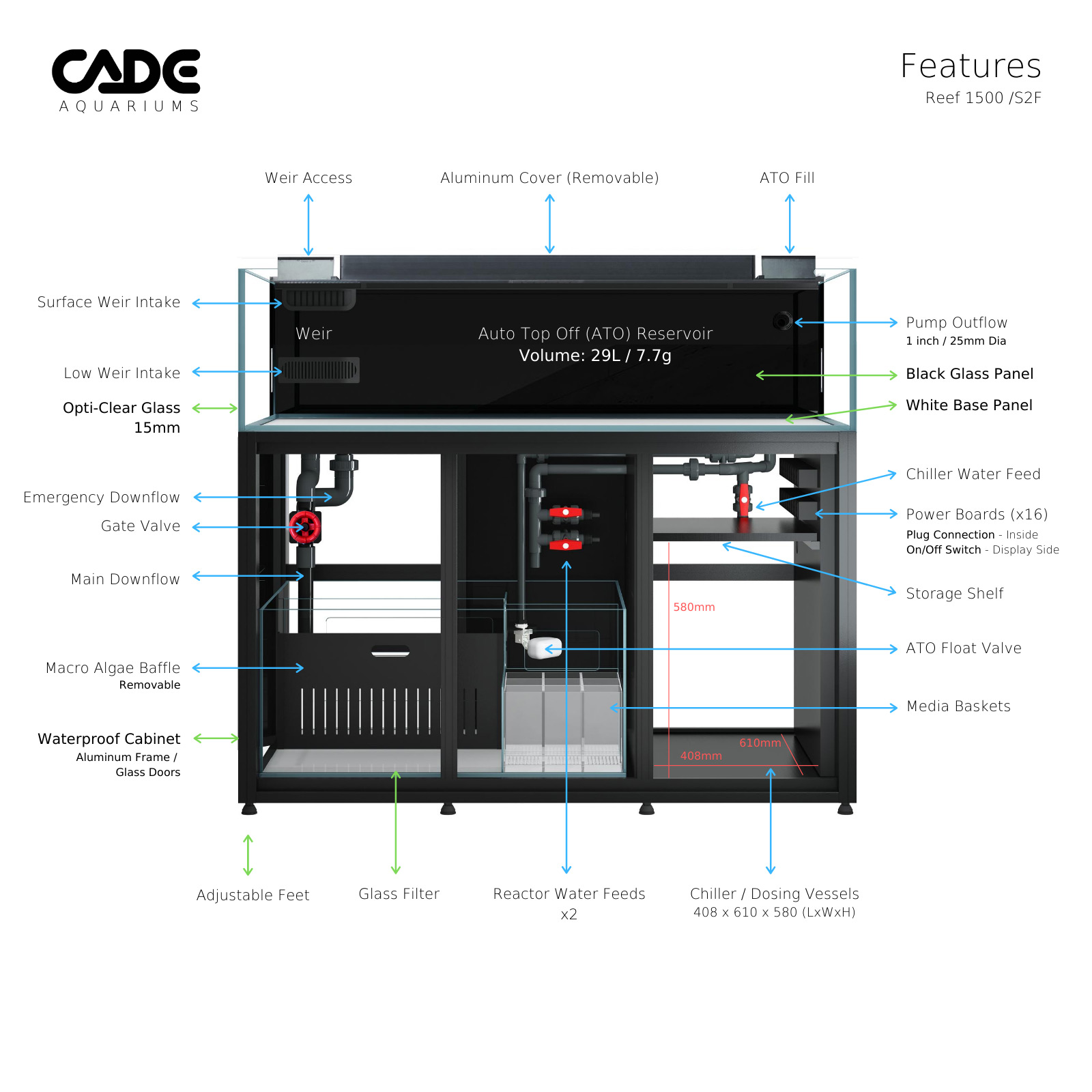

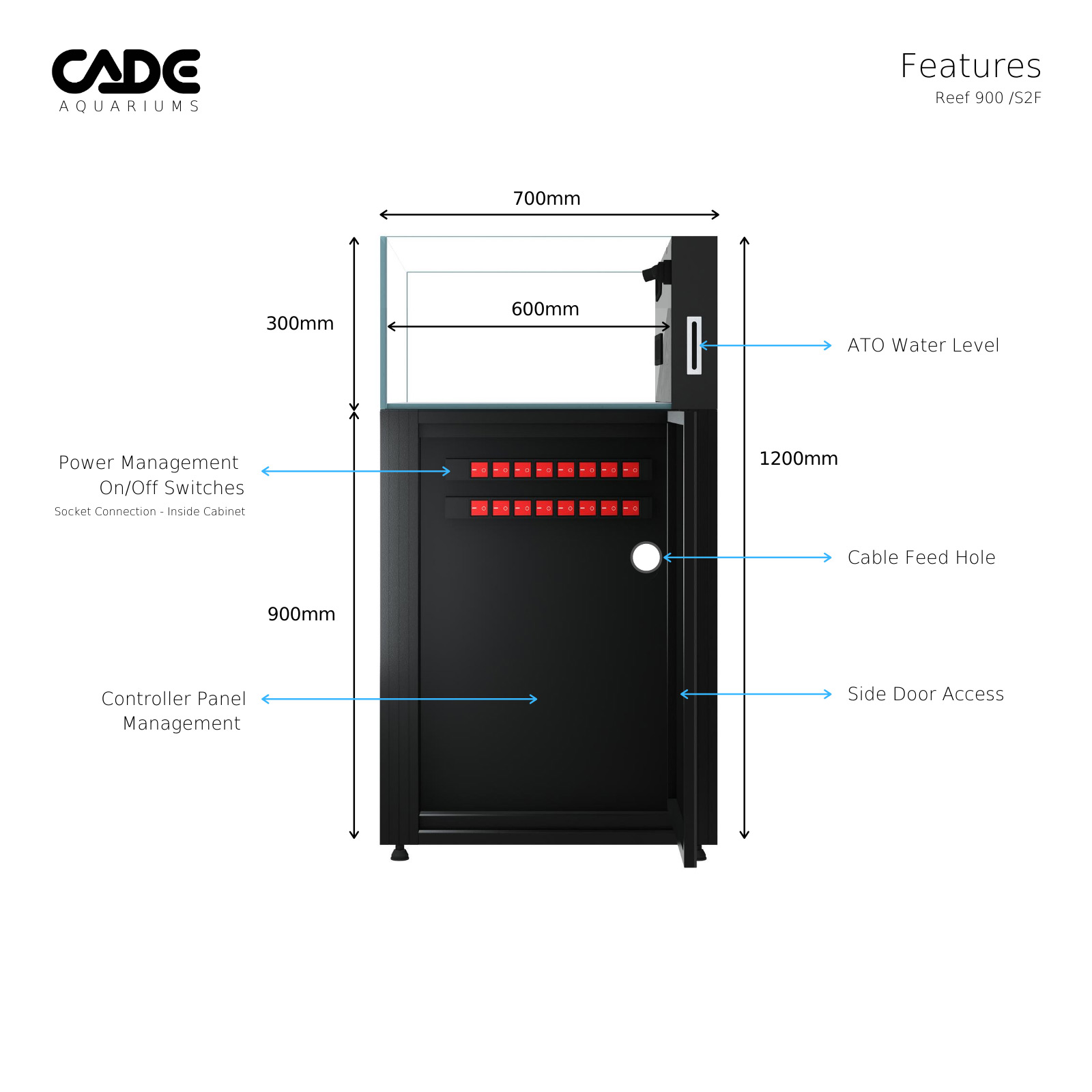

Reef S2/F Cabinet

At CADE our focus is to provide the Aquarist with anintelligently designed indestructible foundation enabling you to build a truelypersonalised Aquarium system without compromise.

  • Constructed using 100% Waterproof and Corrosion proof materials. Aluminum, glass, plastic and 316 stainless screws.
  • Pre-assembled with sump filter safely secured inside.
  • Dry area for a Chiller and dry goods storage. Shelf for dosing pump and cable management. We've even provided a Chiller tap water feed.
  • Power Management zone including control board mounting panel behind side suicide door.
  • Power Boards (8 sockets) c/w outer switches and internal plug sockets. (Supplied region specific).
  • Pre fitted tank mat.
  • Industrial levelling feet.
  • Internal magnetic door closers.
  • Quick release removable doors.

Features that Aquarists dream about.

Seperate dry area for chiller and accessories, with controller management side access.

Seperate dry area for chiller and accessories, with controller management side access.

  • Ventilated dry area suitably sized to accomodate a chiller and dosing vessels.
  • Chiller water feed tap for easy plumbing.
  • Shelf for dosing pump and cable management.
  • Pre drilled dosing line holes to sump filter.
Side 'suicide door' access for uninterrupted access to sump and plumbing.

Side 'suicide door' access for uninterrupted access to sump and plumbing.

  • Our unique side 'suicide door' are definitely a crowd favourite providing uninterrupted access to the sump for servicing and maintenance.
  • Harvesting macro algae or accessing filter socks has never been easier with this feature.

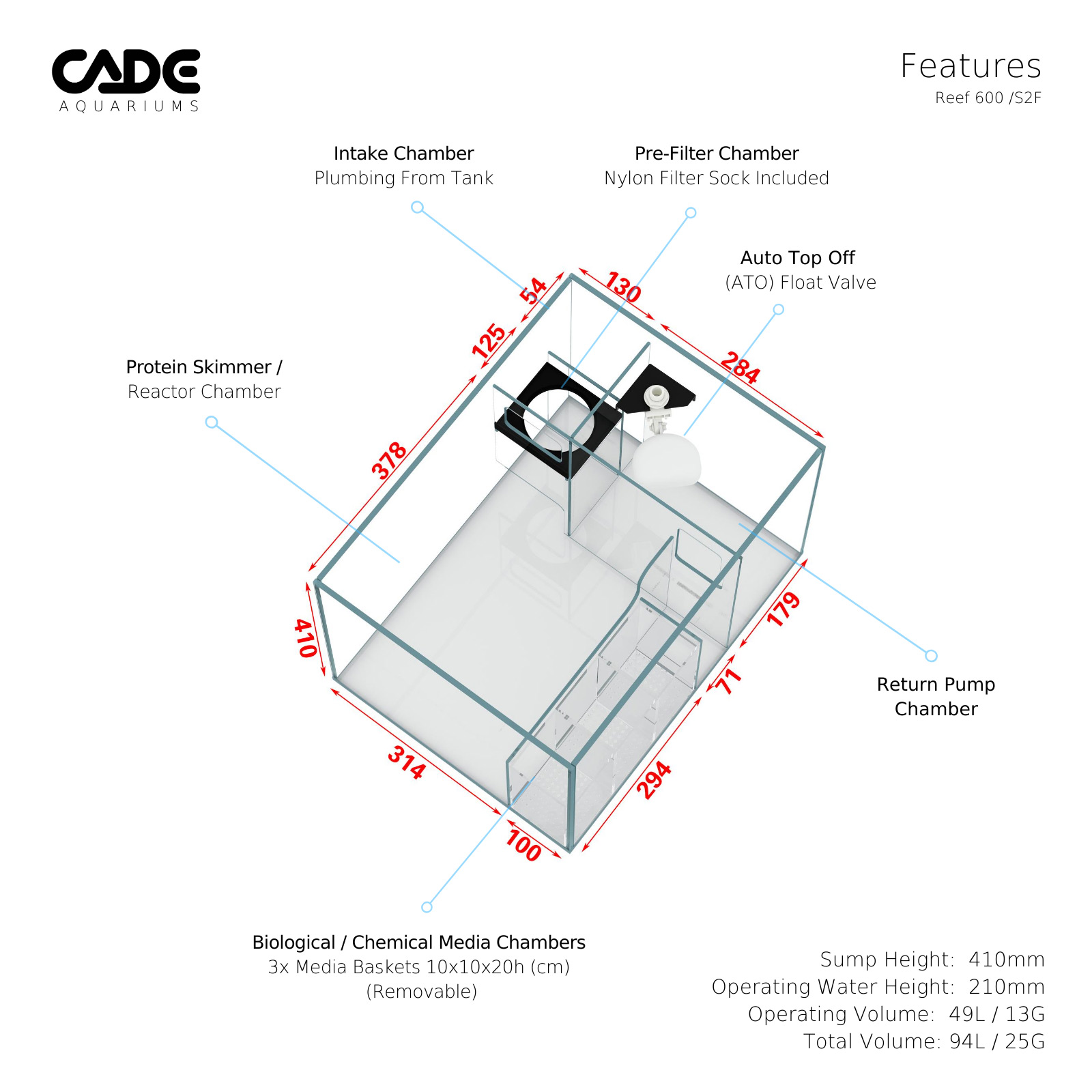

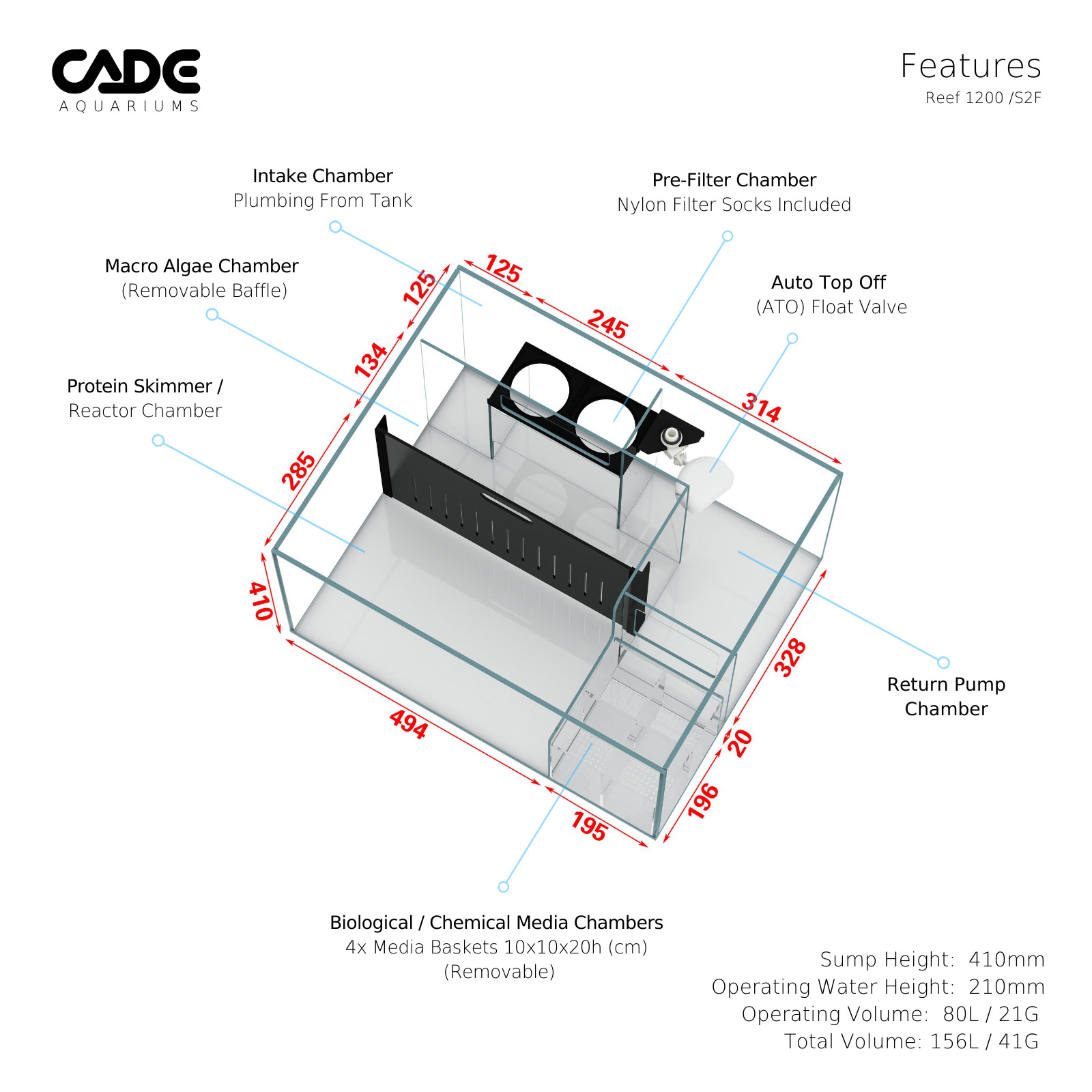

Reef S2/F Filtration

The Reef S2/F glass sump filteration system provides smart use of space ensuring the Aquarist has the flexibility they need to establish their preferred filtration experience. All within in a silent splash free sump.

  • Filter sock mechanical filtration.
  • Macro algae chamber (removable baffle).
  • Large protein skimmer / reactor chambers.
  • Reactor water tap feeds.
  • Flow concentrated media chamber promoting optimised biological & bio-chemical filtration efficiency.
  • Proprietary 'media baskets' for biological and biochemical media.
  • Return pump chamber c/w auto top off (ATO) freshwater replenishment float valve.
  • Silent, splash free operation eliminating salt spray.
No items found.

Advanced feature rich filtration designed for versatility and absolute silence.

Pre-fabricated plumbing & fine tune Gate Valve.

Pre-fabricated plumbing & fine tune Gate Valve.

  • Pre-fabricated 'quick connect' plumbing installs in minutes requiring no tools or silicone.
  • Industry leading fine tuneable Sanking 'Gate Valve' makes tuning down flow easy.
  • Additional water feed taps eliminate the need for additional pumps for reactors.
Refugium chamber with removable baffle.

Refugium chamber with removable baffle.

  • Refugiums are a great way to manage nitrate and phosphate nutrient export in a saltwater Aquariums.
  • If this feature is not required simply slide out the removable baffle and use the space for another purpose.
  • Provided in models Reef S2/F 1200 and 1500. Not available on Reef S2/F 900.
Media baskets for easy maintenance and optimised filtration efficiency.

Media baskets for easy maintenance and optimised filtration efficiency.

  • Media baskets are perfect for any form of Biological or Bio-Chemical filter media reducing the need for additional media reactors.
  • Easily removable to exchange expired biochemical media.
  • Flow controlled to maximise contact time improving bio and bio-chemical filtration efficiency.
  • Excess water bypasses the chamber and acts to surface skim the sump.
Gravity fed ATO feed into return chamber with large float valve.

Gravity fed ATO feed into return chamber with large float valve.

  • Gravity fed float valve replenishes evaporated water from the ATO reservoir situated in the rear of the main Aquarium above.
  • Float valves are the industry standard for a fail proof mechanical ATO.
  • The Reef S2 and S2/F tank reservoir provides the perfect solution to incorporate a gravity feed ATO which until now had been inconvenient due to the difficulties involved in placing a reservoir higher than the sump.

Reef S2/F 'Frag'

Models

Reef S2/F 600
Reef S2/F 600
System capacity
175L / 46 gal
Tank LxWxH (mm)
600 x 700 x 350
Tank vol. inhabitable
126L / 33 gal
Tank glass thickness
10mm
Tank glass type
Opti Clear Glass
Twin intake weir
Yes
White glass base
Yes
Jump net cover
Supplied assembled
ATO capacity
10L / 2.6 gal
Cabinet LxWxH (mm)
600 x 700 x 900
Waterproof cabinet
Yes
Chiller space LxWxH (mm)
NA
Dosing / accessory shelf
Yes
Controller safe area
Yes, inner side mounting board
Power plug (qty)
8
Adjustable levelling feet
Yes
Cabinet assembly
Pre-assembled with sump installed
Sump LxWxH (mm)
430 x 570 x 410
Sump operating vol.
49L / 13 gal
Sump operating water height (mm)
210
Filter sock (qty)
1
Macro algae chamber
No
Filter basket (qty)
3
Reactor feed (qty)
1
Chiller feed (qty)
1
ATO capacity
10L / 2.6 gal
Reef S2/F 900
Reef S2/F 900
System capacity
238L / 63 gal
Tank LxWxH (mm)
900 x 700 x 350
Tank vol. inhabitable
189L / 50 gal
Tank glass thickness
12mm
Tank glass type
Opti Clear Glass
Twin intake weir
Yes
White glass base
Yes
Jump net cover
Supplied assembled
ATO capacity
15.6L / 4.1 gal
Cabinet LxWxH (mm)
900 x 700 x 900
Waterproof cabinet
Yes
Chiller space LxWxH (mm)
296 x 610 x 580
Dosing / accessory shelf
Yes
Controller safe area
Yes, inner side mounting board
Power plug (qty)
16
Adjustable levelling feet
Yes
Cabinet assembly
Pre-assembled with sump installed
Sump LxWxH (mm)
430 x 570 x 410
Sump operating vol.
49L / 13 gal
Sump operating water height (mm)
210
Filter sock (qty)
1
Macro algae chamber
No
Filter basket (qty)
3
Reactor feed (qty)
2
Chiller feed (qty)
1
ATO capacity
15.6L / 4.1 gal
Reef S2/F 1200
Reef S2/F 1200
System capacity
332L / 88 gal
Tank LxWxH (mm)
1200 x 700 x 350
Tank vol. inhabitable
252L / 66.5 gal
Tank glass thickness
12mm
Tank glass type
Opti Clear Glass
Twin intake weir
Yes
White glass base
Yes
Jump net cover
Supplied assembled
ATO capacity
27L / 7 gal
Cabinet LxWxH (mm)
1200 x 700 x 900
Waterproof cabinet
Yes
Chiller space LxWxH (mm)
321 x 610 x 580
Dosing / accessory shelf
Yes
Controller safe area
Yes, inner side mounting board
Power plug (qty)
16
Adjustable levelling feet
Yes
Cabinet assembly
Pre-assembled with sump installed
Sump LxWxH (mm)
700 x 570 x 410
Sump operating vol.
80L / 21 gal
Sump operating water height (mm)
210
Filter sock (qty)
2
Macro algae chamber
Yes, removable
Filter basket (qty)
4
Reactor feed (qty)
2
Chiller feed (qty)
1
ATO capacity
27L / 7 gal
Reef S2/F 1500
Reef S2/F 1500
System capacity
370L / 97.7 gal
Tank LxWxH (mm)
1500 x 700 x 350
Tank vol. inhabitable
270L / 71 gal
Tank glass thickness
15mm
Tank glass type
Opti Clear Glass
Twin intake weir
Yes
White glass base
Yes
Jump net cover
Supplied assembled
ATO capacity
35.4L / 9.4 gal
Cabinet LxWxH (mm)
1500 x 700 x 900
Waterproof cabinet
Yes
Chiller space LxWxH (mm)
408 x 610 x 580
Dosing / accessory shelf
Yes
Controller safe area
Yes, inner side mounting board
Power plug (qty)
16
Adjustable levelling feet
Yes
Cabinet assembly
Pre-assembled with sump installed
Sump LxWxH (mm)
890 x 570 x 410
Sump operating vol.
100L / 26.4 gal
Sump operating water height (mm)
210
Filter sock (qty)
4
Macro algae chamber
Yes, removable
Filter basket (qty)
4
Reactor feed (qty)
2
Chiller feed (qty)
1
ATO capacity
35.4L / 9.4 gal

Explore the range...

Select a model
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.
No items found.

Frequently asked questions

Feature popup icon
How does the weir’s low-level intake work in the event of a power outage or when the pump is off?

Behind the low intake vents is a sealed glass channel that diverts water to the surface. This glass channels function is to both direct the debris to the surface for direct intake to the surface level plumbing and also to prevent water flooding the weir when the pump is switched off.
